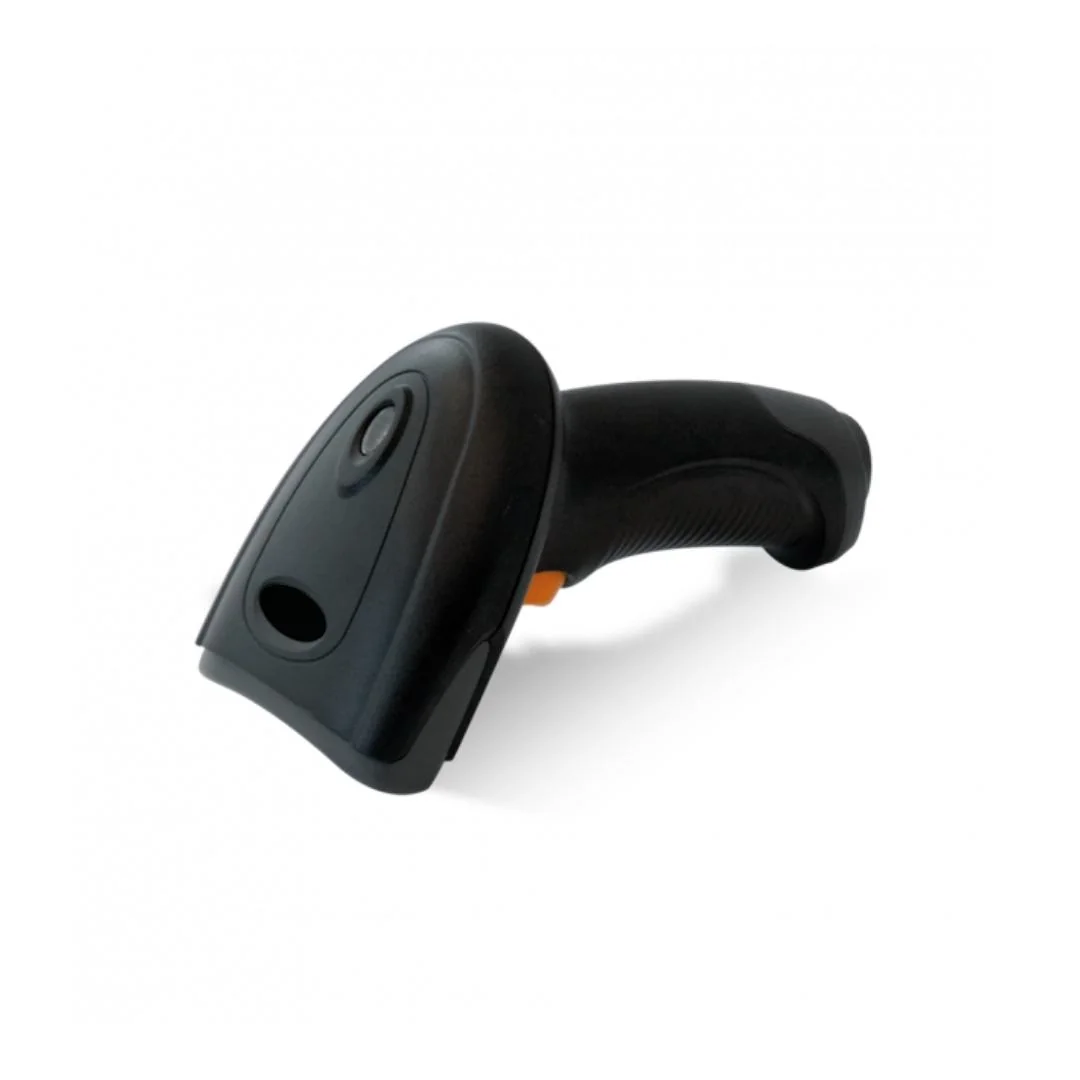

HR11 Aringa Barcode Scanner (HR11)

Parameter

Specification / Standard

Model No.

HR11

Type

Handheld

Image Sensor

2500-pixel linear imager

Illumination

Red LED (620–630 nm)

Aiming

40–480 mm

SDK

USB, Android/Windows Bluetooth, Android/iOS

Warranty

5 years

Frequency

N/A (Linear Imager)

Read Range

Up to 30 cm (focus depth)

DOF — EAN-13 (13 mil)

80–180 mm

Minimal Print Contrast

20%

Scan Angle Pitch

±60°

Scan Angle Skew

±70°

Field of View (H)

53°

Scan Modes

Manual, Batch, Auto, Blink, Sense, Continuous, Command Trigger

Scan Rate

300 scans/second

Dimensions

145 × 101 × 68 mm

Weight

120 g

Material

PC, ABS

Buttons

Trigger

Interfaces

RS-232, USB

Notifications

Beep, LED indicator

Input Voltage

5VDC ±5%

Operating Current

70.4 mA (typical), 96.8 mA (max)

Standby Current

57.6 mA

Power Consumption

352 mW (typical)

Power Supply

DC5V 1.5A in / AC100–240V 50–60Hz out

Configuration Tool

EasySet

Operating Temperature

-20°C to 60°C (-4°F to 140°F)

Storage Temperature

-40°C to 70°C (-40°F to 158°F)

Humidity

5% to 95% (non-condensing)

ESD

±8 kV (direct), ±16 kV (air discharge)

Drop Resistance

1.5 m

IP Rating

IP42

Certifications

Certified

Product Capabilities

Ergonomic, lightweight design (120 g) with 1.5 m drop resistance for all-day comfort
Reads barcodes from paper or screen
2500-pixel linear imager with red LED (620–630 nm) illumination
Wide depth of field — 40–480 mm
High scan rate — 300 scans/second across 7 scan modes
IP42 sealed; -20 to 60 °C operating range
RS-232 & USB interfaces; configuration via EasySet
Optional foldable smart stand for hands-free scanning
Fully certified
5-year warranty

Common Deployments

Retail Inventory Warehouse Automation Event Management

General

Model No.	HR11
Type	Handheld
Image Sensor	2500-pixel linear imager
Illumination	Red LED (620–630 nm)
Aiming	40–480 mm
SDK	USB, Android/Windows Bluetooth, Android/iOS
Warranty	5 years
Frequency	N/A (Linear Imager)
Read Range	Up to 30 cm (focus depth)

Scanning

DOF — EAN-13 (13 mil)	80–180 mm
Minimal Print Contrast	20%
Scan Angle Pitch	±60°
Scan Angle Skew	±70°
Field of View (H)	53°
Scan Modes	Manual, Batch, Auto, Blink, Sense, Continuous, Command Trigger
Scan Rate	300 scans/second

Physical

Dimensions	145 × 101 × 68 mm
Weight	120 g
Material	PC, ABS
Buttons	Trigger
Interfaces	RS-232, USB
Notifications	Beep, LED indicator
Input Voltage	5VDC ±5%
Operating Current	70.4 mA (typical), 96.8 mA (max)
Standby Current	57.6 mA
Power Consumption	352 mW (typical)
Power Supply	DC5V 1.5A in / AC100–240V 50–60Hz out
Configuration Tool	EasySet

Environmental

Operating Temperature	-20°C to 60°C (-4°F to 140°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Humidity	5% to 95% (non-condensing)
ESD	±8 kV (direct), ±16 kV (air discharge)
Drop Resistance	1.5 m
IP Rating	IP42
Certifications	Certified

Note: Product specifications, visual appearance, or dimensions may vary as per standard product upgrades, customization, and continuous performance optimization.

Frequently Asked Questions

What frequency does the HR11 operate on?

The HR11 Aringa Barcode Scanner (HR11) operates at N/A (Linear Imager). India's UHF RFID allocation is the 865–867 MHz band, so confirm the regional variant when ordering — POXO supplies WPC/ETA-compliant units for Indian deployments.

What is the read range of the HR11?

Published read range for the HR11 Aringa Barcode Scanner (HR11) is Up to 30 cm (focus depth). Real-world range varies with tag type, antenna gain, mounting position, and nearby metal or liquids, so POXO validates read points on-site before go-live.

What interfaces does the HR11 support?

The HR11 Aringa Barcode Scanner (HR11) provides RS-232, USB. These connect to POXO middleware, which ships with SAP, Oracle, and Tally connectors plus REST APIs for custom ERP, WMS, or MES systems.

Is a software SDK available for the HR11?

Yes — USB, Android/Windows Bluetooth, Android/iOS. Request access through the POXO Developer Zone and our integration team will supply the libraries and sample code for your platform.

What power supply does the HR11 need?

The HR11 Aringa Barcode Scanner (HR11) runs on DC5V 1.5A in / AC100–240V 50–60Hz out. POXO covers power and cabling requirements in the site survey so panel and PoE provisioning is planned before installation.
