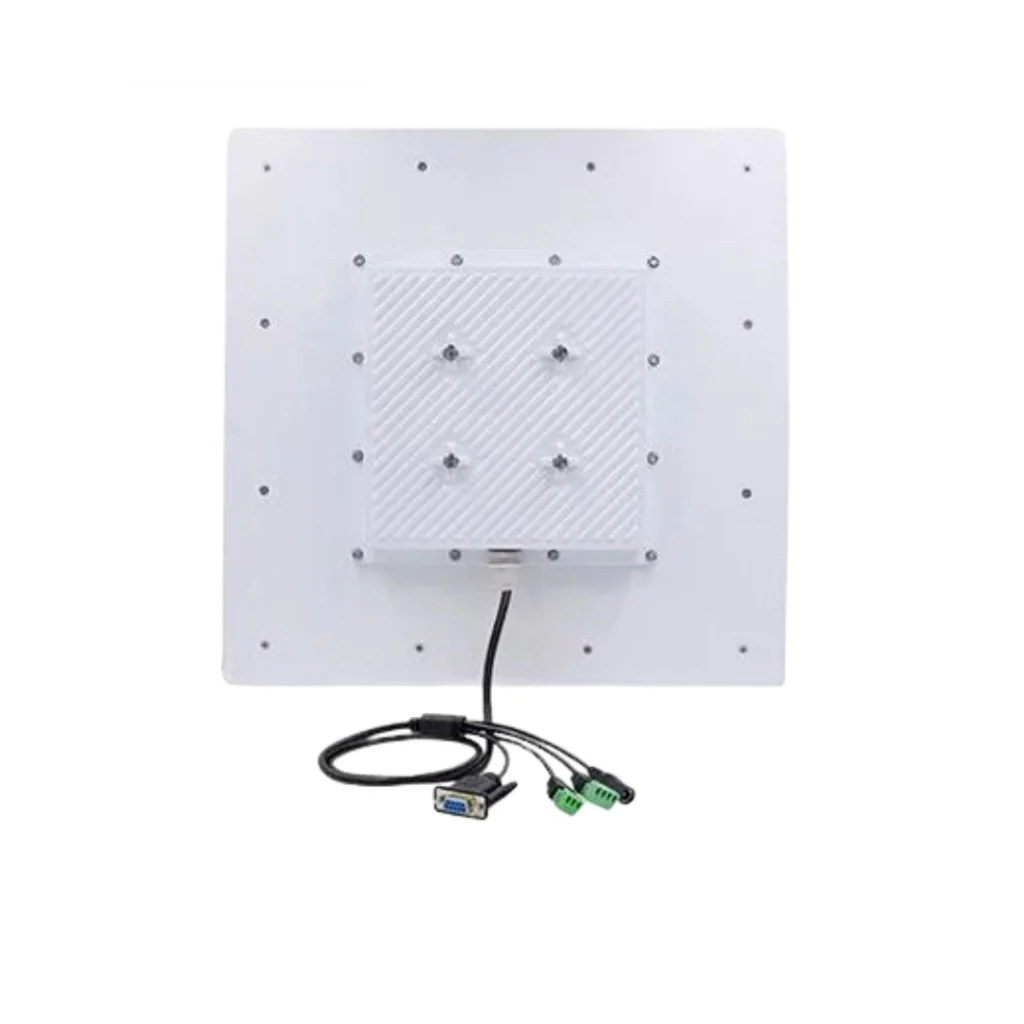

Integrated RFID Reader (P-RF90)

Parameter

Specification / Standard

Frequency

865–868 MHz (India/EU) / 902–928 MHz (US)

Protocol Standard

ISO 18000-6C (EPC Gen 2)

Built-in Antenna

12 dBi linear polarization

RF Output Power

Max 27 dBm (adjustable)

Reading Distance

Up to 25 m (ideal) (tag & environment dependent, adjustable)

Working Mode

Active / Trigger / Answer mode

Special Functions

Password mode, Mask mode, RSSI support

RSSI

Supported

Indicator

LED light — Red & Green LED + Buzzer

Standard Interface

RS232 (TTL / RS485), Wiegand 26, Relay

Optional Interface

TCP/IP (Ethernet), POE, Wi-Fi

Power Supply

DC 9V 3A / 12V 2A

Material

ABS + die-cast aluminium

Color

White

IP Protection

IP65 (waterproof & dustproof)

Dimensions

445 × 445 × 80 mm

Net Weight

3.1 kg

Storage Temp

-20 °C to +75 °C

SDK

Demo software, API, examples & user manuals

Development Languages

C#, Delphi, Java, Python, VB and other languages

Product Capabilities

Built-in relay output for direct barrier/turnstile control
Flexible interfaces: RS232, Wiegand 26, TCP/IP, POE, and Wi-Fi
Built-in Mask and Password security encryption modes
RSSI signal strength reporting for zone-level positioning
IP65-rated ABS + die-cast aluminium enclosure for outdoor deployment

Common Deployments

Warehouse Automation Smart Parking Assembly Line Tracking

Technical Specs

Frequency	865–868 MHz (India/EU) / 902–928 MHz (US)
Protocol Standard	ISO 18000-6C (EPC Gen 2)
Built-in Antenna	12 dBi linear polarization
RF Output Power	Max 27 dBm (adjustable)
Reading Distance	Up to 25 m (ideal) (tag & environment dependent, adjustable)
Working Mode	Active / Trigger / Answer mode
Special Functions	Password mode, Mask mode, RSSI support
RSSI	Supported
Indicator	LED light — Red & Green LED + Buzzer

Data Communication

Standard Interface	RS232 (TTL / RS485), Wiegand 26, Relay
Optional Interface	TCP/IP (Ethernet), POE, Wi-Fi
Power Supply	DC 9V 3A / 12V 2A

Physical Parameters

Material	ABS + die-cast aluminium
Color	White
IP Protection	IP65 (waterproof & dustproof)
Dimensions	445 × 445 × 80 mm
Net Weight	3.1 kg
Storage Temp	-20 °C to +75 °C

Development Environment

SDK	Demo software, API, examples & user manuals
Development Languages	C#, Delphi, Java, Python, VB and other languages

Note: Product specifications, visual appearance, or dimensions may vary as per standard product upgrades, customization, and continuous performance optimization.

Frequently Asked Questions

What frequency does the P-RF90 operate on?

The Integrated RFID Reader (P-RF90) operates at 865–868 MHz (India/EU) / 902–928 MHz (US). India's UHF RFID allocation is the 865–867 MHz band, so confirm the regional variant when ordering — POXO supplies WPC/ETA-compliant units for Indian deployments.

What is the read range of the P-RF90?

Published read range for the Integrated RFID Reader (P-RF90) is Up to 25 m (ideal) (tag & environment dependent, adjustable). Real-world range varies with tag type, antenna gain, mounting position, and nearby metal or liquids, so POXO validates read points on-site before go-live.

Is a software SDK available for the P-RF90?

Yes — Demo software, API, examples & user manuals. Request access through the POXO Developer Zone and our integration team will supply the libraries and sample code for your platform.

What power supply does the P-RF90 need?

The Integrated RFID Reader (P-RF90) runs on DC 9V 3A / 12V 2A. POXO covers power and cabling requirements in the site survey so panel and PoE provisioning is planned before installation.

How many antennas can I connect to a fixed RFID reader?

It depends on the model — integrated readers have a built-in antenna, while multi-port fixed readers connect several external antennas to cover dock doors, portals, or conveyor lines. Our engineers size the antenna count during the site survey.
