Fixed Reader (P-4i) - 4 channels | P-4i

Parameter

Specification / Standard

Frequency

865–868 MHz (India/EU) / 902–928 MHz (US)

Protocol Standard

ISO18000-6B/6C (EPC GEN2)

Built-in Engine

Impinj with latest 5xx/7xx/9xx series

Working Mode

Answer Mode, Real-Time-Inventory, Trigger Mode (optional)

Max Read Rate

Up to 1100 pcs/s (depending upon environment & tag)

Reading Distance

25 m (ideal) (depends on external antenna gain & RFID tag, adjustable)

Inventory Mode

Support EPC and TID Inventory

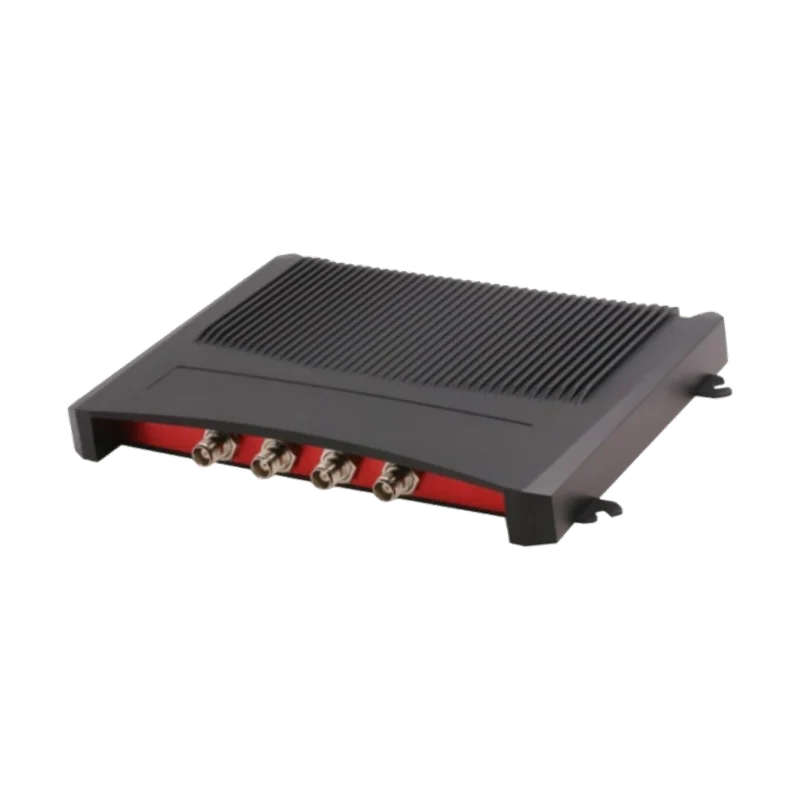

Antenna Ports

4 Channel RP TNC Female

RSSI

Supported

RF Output Power

30 – 33 dBm (adjustable)

Special Features

Anti-collision, multi-antenna ports, data cache, polling fast inventory (600pcs @ 128bits EPC)

Standard Interface

RS232, TCP/IP, USB, GPIO

Optional Interface

POE, Wi-Fi

GPIO Connector

DB15 Female

Current Dissipation

0.5 – 1.2 A

Dimensions

270 × 180 × 27 mm

Net Weight

1.3 kg

Operating Temp

-20 °C to +65 °C

Storage Temp

-40 °C to +85 °C

SDK

USB, Android / Windows Bluetooth, Android / iOS

Product Capabilities

Built-in Impinj engine with the latest 5xx/7xx/9xx series chips
Supports 4 TNC channel female RF antenna ports
High-performance reading up to 1100 pieces per second
Adjustable RF Output Power between 30 and 33 dBm
Flexible interfaces: RS232, TCP/IP, USB, and GPIO (DB15 Female)
Supports EPC and TID inventory with anti-collision algorithms

Common Deployments

Warehouse Automation Smart Parking Assembly Line Tracking

Technical Specs

Frequency	865–868 MHz (India/EU) / 902–928 MHz (US)
Protocol Standard	ISO18000-6B/6C (EPC GEN2)
Built-in Engine	Impinj with latest 5xx/7xx/9xx series
Working Mode	Answer Mode, Real-Time-Inventory, Trigger Mode (optional)
Max Read Rate	Up to 1100 pcs/s (depending upon environment & tag)
Reading Distance	25 m (ideal) (depends on external antenna gain & RFID tag, adjustable)
Inventory Mode	Support EPC and TID Inventory
Antenna Ports	4 Channel RP TNC Female
RSSI	Supported
RF Output Power	30 – 33 dBm (adjustable)
Special Features	Anti-collision, multi-antenna ports, data cache, polling fast inventory (600pcs @ 128bits EPC)

Data Communication

Standard Interface	RS232, TCP/IP, USB, GPIO
Optional Interface	POE, Wi-Fi
GPIO Connector	DB15 Female
Current Dissipation	0.5 – 1.2 A

Physical Parameters

Dimensions	270 × 180 × 27 mm
Net Weight	1.3 kg
Operating Temp	-20 °C to +65 °C
Storage Temp	-40 °C to +85 °C

Development Environment

SDK	USB, Android / Windows Bluetooth, Android / iOS

Note: Product specifications, visual appearance, or dimensions may vary as per standard product upgrades, customization, and continuous performance optimization.

Frequently Asked Questions

What frequency does the P-4i operate on?

The Fixed Reader (P-4i) - 4 channels operates at 865–868 MHz (India/EU) / 902–928 MHz (US). India's UHF RFID allocation is the 865–867 MHz band, so confirm the regional variant when ordering — POXO supplies WPC/ETA-compliant units for Indian deployments.

What is the read range of the P-4i?

Published read range for the Fixed Reader (P-4i) - 4 channels is 25 m (ideal) (depends on external antenna gain & RFID tag, adjustable). Real-world range varies with tag type, antenna gain, mounting position, and nearby metal or liquids, so POXO validates read points on-site before go-live.

Is a software SDK available for the P-4i?

Yes — USB, Android / Windows Bluetooth, Android / iOS. Request access through the POXO Developer Zone and our integration team will supply the libraries and sample code for your platform.

How many antennas can I connect to a fixed RFID reader?

It depends on the model — integrated readers have a built-in antenna, while multi-port fixed readers connect several external antennas to cover dock doors, portals, or conveyor lines. Our engineers size the antenna count during the site survey.

Can this reader integrate with our ERP or WMS?

Yes. POXO fixed readers work with our middleware, which ships with SAP, Oracle, and Tally connectors plus REST APIs for custom systems, so read events post to your ERP in real time.
