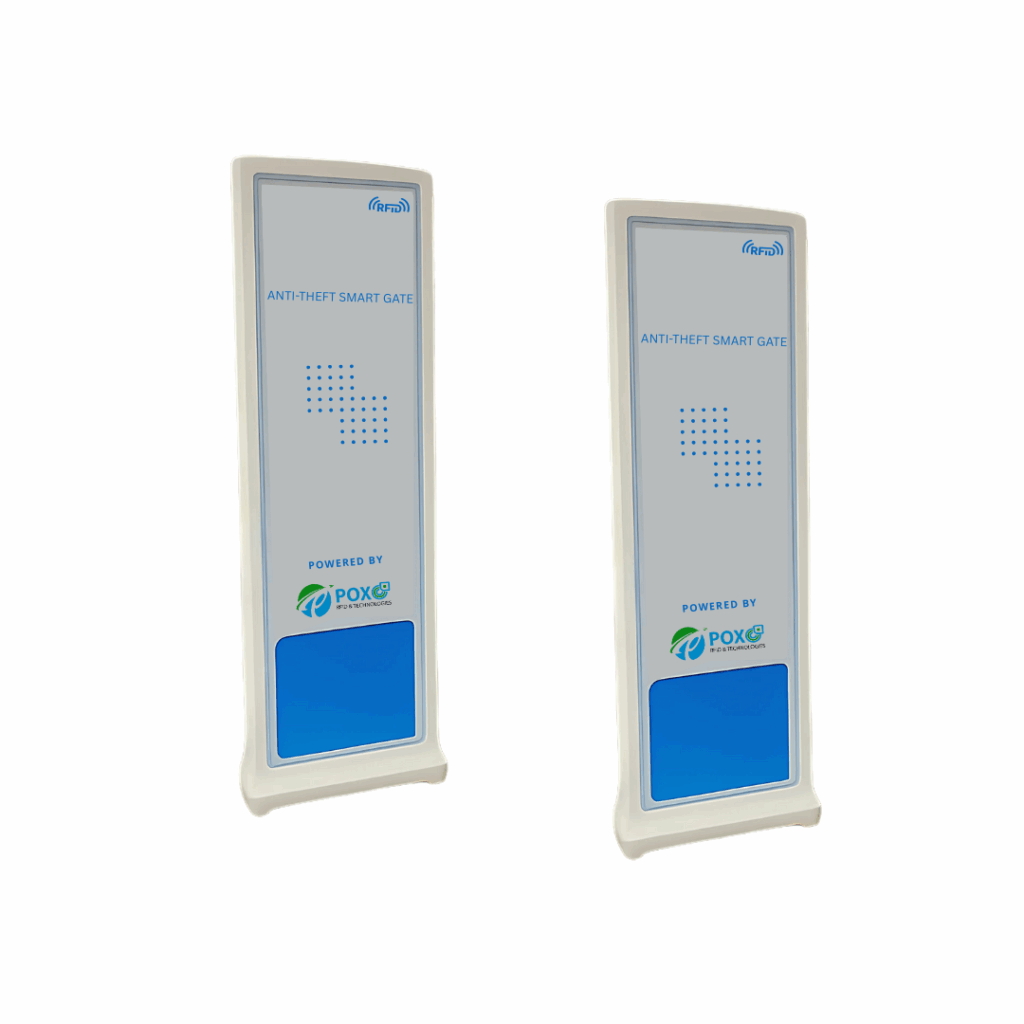

Smart Gate Reader is a high-performance UHF-based Rain RFID Gate device. It supports Anti-collision operation with a high identification rate
| Parameter | Specification / Standard |
|---|---|
| Frequency | 865–868 MHz (India/EU) / 902–928 MHz (US) |
| Protocol Standard | ISO 18000-6C (EPC Gen 2) |
| Built-in Antenna | 36 dBi (Max) Circular polarization |
| RF Output Power | 30 dBm (adjustable) |
| Coverage | Up to 3 meters (recommended 1.5 m) |
| Indicator | Multiple Red / Green LED channels (visual) + Sound Buzzer (audio) |
| Reading Distance | 3 m (preferred) (aisle width / gate width, adjustable) |
| Data Transmission | Wired (LAN/RS232), Wireless (TCP/IP) via RJ45 |
| Dimensions | 1828 x 792 x 152 mm (L x W x H), customizable |
Smart Gate Reader is a high-performance UHF-based Rain RFID Gate device. It supports Anti-collision operation with a high identification rate
| Frequency | 865–868 MHz (India/EU) / 902–928 MHz (US) |
| Protocol Standard | ISO 18000-6C (EPC Gen 2) |
| Built-in Antenna | 36 dBi (Max) Circular polarization |
| RF Output Power | 30 dBm (adjustable) |
| Coverage | Up to 3 meters (recommended 1.5 m) |
| Indicator | Multiple Red / Green LED channels (visual) + Sound Buzzer (audio) |
| Reading Distance | 3 m (preferred) (aisle width / gate width, adjustable) |
| Data Transmission | Wired (LAN/RS232), Wireless (TCP/IP) via RJ45 |
| Dimensions | 1828 x 792 x 152 mm (L x W x H), customizable |
The Smart Monitoring Gates (P-G800U) operates at 865–868 MHz (India/EU) / 902–928 MHz (US). India's UHF RFID allocation is the 865–867 MHz band, so confirm the regional variant when ordering — POXO supplies WPC/ETA-compliant units for Indian deployments.
Published read range for the Smart Monitoring Gates (P-G800U) is 3 m (preferred) (aisle width / gate width, adjustable). Real-world range varies with tag type, antenna gain, mounting position, and nearby metal or liquids, so POXO validates read points on-site before go-live.
It depends on the model — integrated readers have a built-in antenna, while multi-port fixed readers connect several external antennas to cover dock doors, portals, or conveyor lines. Our engineers size the antenna count during the site survey.
Yes. POXO fixed readers work with our middleware, which ships with SAP, Oracle, and Tally connectors plus REST APIs for custom systems, so read events post to your ERP in real time.
Tag type, antenna gain, mounting position, and the surrounding environment (metal, liquids, interference) all affect range. We validate read points on-site before go-live so quoted performance matches your floor.
Interested in this hardware model? Fill out the details below, and our RFID architects will share a customized proposal.
Hardware that pairs with the Smart Monitoring Gates (P-G800U) in a complete POXO system.
