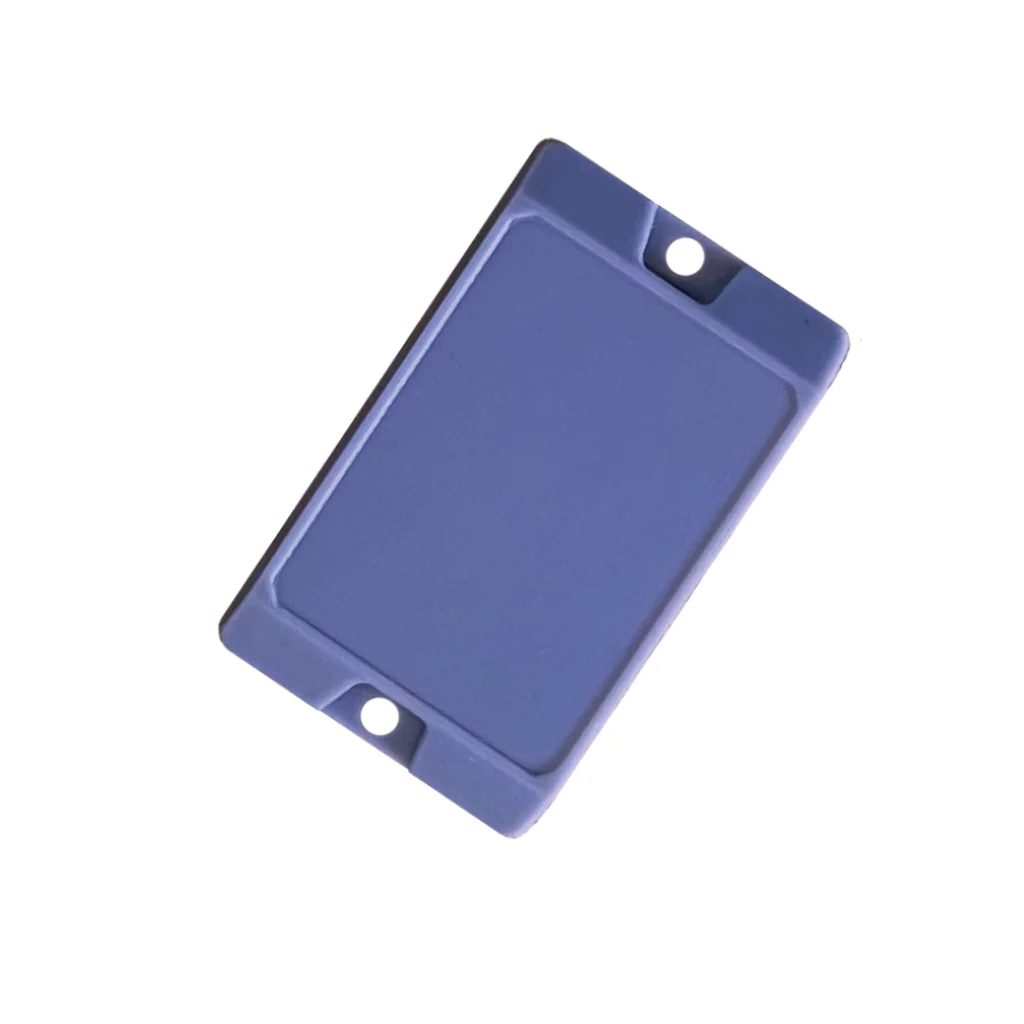

RFID Metal tags (px-dodge)
DESCRIPTION
PX-DODGE asset tags come in different sizes and can print the required customized details. These are UHF tags that work in both metal and free air environmental conditions, and they are used for various industrial purposes.
FEATURES
- Working Environment : On metal, non-metal, free air
Specifications
GENERAL SPECIFICATIONS
SUPPORTED RFID READER
Model No. : PX-DODGE
Protocol: ISO 18000-6C EPC Class1 Gen2
Frequency: 865~868MHz (EU standard), 902~928MHz (US Standard)
Surface: Metalic / Wooden / Plastic / Glass Etc.
POXO : P-105, P-107, P-12, P-RF90, P-4i, P-8i etc.
Other Reputed Brand: Impinj, Zebra, Honeywell, Denso, Newland, Bluebird, (TSC- AUTO ID), SICK, CAEN, MTI, etc
CHARACTERISTICS
Attachment Type: Adhesive / Magnet / Rivet (Screwable) / Side hooks
Antenna: Aluminum Antenna (designed by POXO)
Material: ABS / PVC
Read distance: Up to 8m (depending on the surface/environment / readers)
Built-in Engine: Impinj / Alien / NXP UCODE
Memory: minimum 96 bits EPC (Customizable)
Data Retention life: Upto 10 Years.
Size: 62mm* 36mm* 12mm
Operating Temperature: -25 ºC to +85 ºC
Storage Temperature: -25 ºC to +65 ºC
IP Rating: IP66
