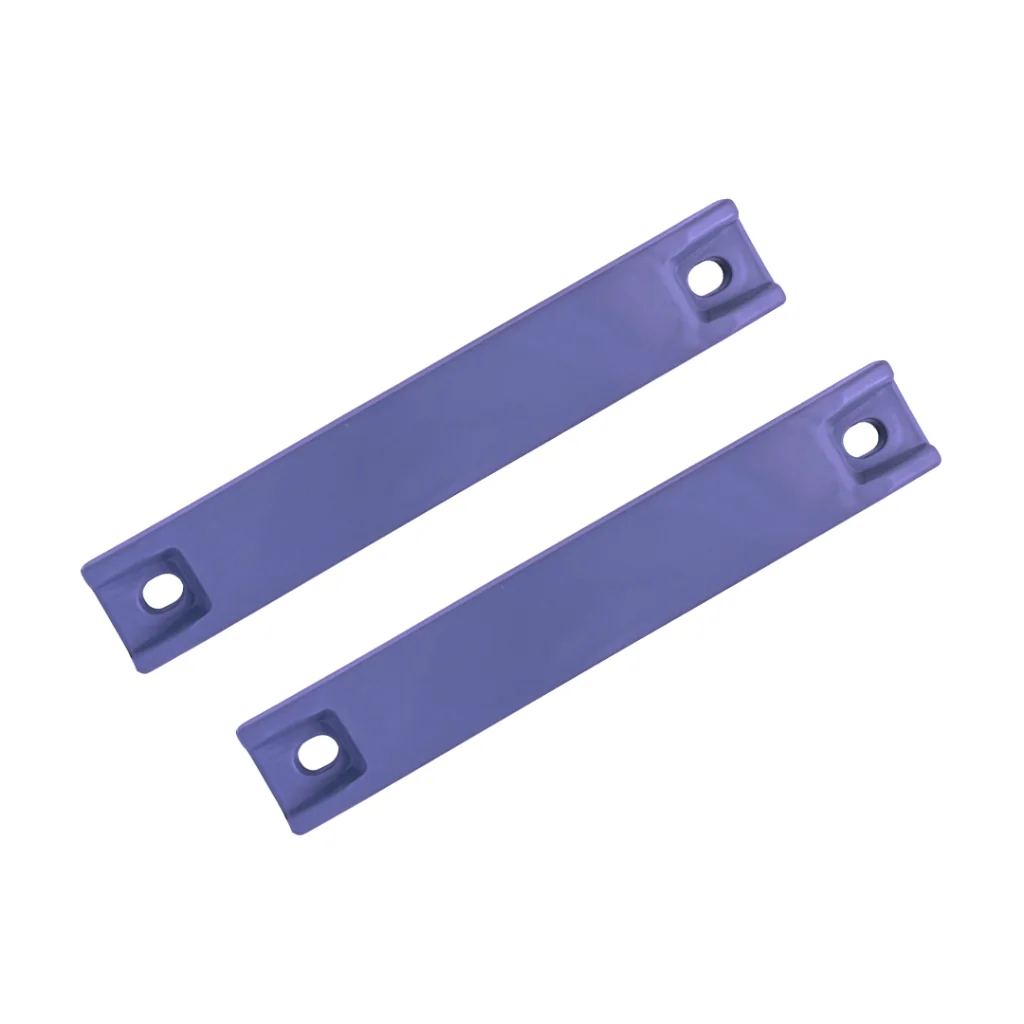

RFID Metal tags (px-meta60)
DESCRIPTION
PX-META 60 Asset tags come in different sizes and can print customized required details. These are UHF Tags works in both metal or free air environmental conditions & used for various industrial purposes.
FEATURES
- Working Environment : On metal, non-metal, free air
Specifications
GENERAL SPECIFICATIONS
SUPPORTED RFID READER
Model No. : PX-META60
Protocol: ISO 18000-6C EPC Class1 Gen2
Frequency: 865~868MHz (EU standard), 902~928MHz (US Standard)
Surface: Metalic / Wooden / Plastic / Glass Etc.
POXO : P-105, P-107, P-12, P-RF90, P-4i, P-8i etc.
Other Reputed Brand: Impinj, Zebra, Honeywell, Denso, Newland, Bluebird, (TSC- AUTO ID), SICK, CAEN, MTI, etc
CHARACTERISTICS
Attachment Type: Adhesive / Magnet / Rivet (Screwable) / Side hooks
Antenna: Aluminum Antenna (designed by POXO)
Material: ABS / PVC
Read distance: Up to 12m (depending on the surface/environment / readers)
Built-in Engine: Impinj / Alien / NXP UCODE
Memory: minimum 96 bits EPC (Customizable)
Data Retention life: Upto 10 Years.
Size: 150mm* 25mm* 12.5mm (Size may vary ±mm)
Operating Temperature: -25 ºC to +85 ºC
Storage Temperature: -25 ºC to +65 ºC
IP Rating: IP66
